Ultraviolet Lamp Power Supply

Main Input Voltage: 360~440Vac
Frequency: >47Hz
COS∅: 1
Power Factor: 0.96

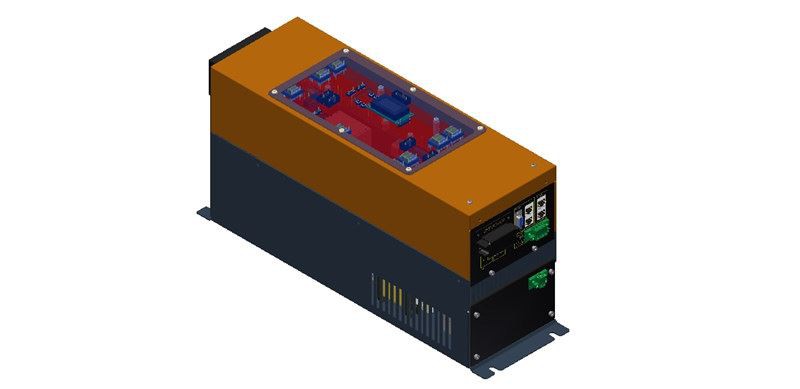

HPE Intelligent UV Power Supply

For 10KW-14KW UV Lamp---HUTA

image001_

Input Section
Main Input Voltage	360~440Vac
Frequency	>47Hz
COS∅	1
Power Factor	0.96
THD	30%
Efficiency	Typ.>94%
Output Section
Working Frequency	Variable from 6Khz to 16Khz
Ignition Voltage	>4000Vpp
Ignition Frequency	270Khz
Max. Output Power	14Kw(40℃ ambient Temp)
Output Voltage	Up to 1800Vac
Output Current	Up to 25A
Control Port	MODBUS/Analog and Digital I/O
Lamp Monitoring	Voltage/current/power/status code/error code
Protections	Input under/over Voltage； Phase Loss Output Open/Short Output Over voltage Over Temperature Ground & Leakage Fault
Auxiliary Section
Voltage	21Vdc-30Vdc
Current	3.0Adc
Working Environment
Max. ambient Temperature	40℃(up to 1000meters Sea Level)
Max. Humidity	<80%
Protection Class	IP20
Cooling	Forced Air Cooling
Dimension (LWH)mm	530160252
Weight	20Kg
