Intelligent EPS UV Ballast Power Supply

Intelligent EPS UV Ballast Power Supply

Main Input Voltage: 360~440Vac
Frequency: >47Hz
COS∅: 1
Power Factor: 0.96

Description

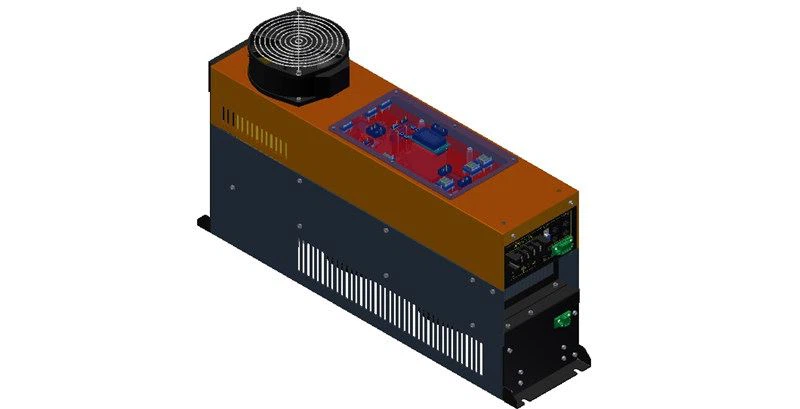

The Intelligent EPS UV Ballast Power Supply is a highly intelligent power supply unit designed specifically for controlling and optimizing the operation of UV (Ultraviolet) lamp systems. These ballast power supplies integrate intelligent features and cutting-edge technology to ensure precise and efficient performance in a wide range of applications.

The Intelligent EPS UV Ballast Power Supply is a highly intelligent power supply unit designed specifically for controlling and optimizing the operation of UV (Ultraviolet) lamp systems. These ballast power supplies integrate intelligent features and cutting-edge technology to ensure precise and efficient performance in a wide range of applications.

Input Section

Main Input Voltage

360~440Vac

Frequency

>47Hz

COS∅

1

Power Factor

0.96

THD (current)

30%

Efficiency

Typ.>94%



Output Section

Working Frequency

Variable from 6Khz to 16Khz

Ignition Voltage

>4000Vpp

Ignition Frequency

270Khz

Max. Output Power

22Kw(40℃ ambient Temp)

Output Voltage

Up to 2500Vac

Output Current

Up to 20A

Control Port

MODBUS/Analog and Digital I/O

Lamp Monitoring

Voltage/current/power/status/error code

Protections

Input under/over Voltage;

Phase Loss

Output Open/Short

Output Over voltage

Over Temperature

Ground&Leakage Fault



Auxiliary Section

Voltage

21Vdc-30Vdc

Current

1.5Adc



Working Environment

Max. ambient Temperature

40℃(up to 1000meters Sea Level)

Max. Humidity

<80%

Protection Class

IP20

Cooling

Forced Air Cooling

Dimension (LWH)mm

675*160*363

Weight

31Kg



Products Feature



  1. Intelligent Control: The Intelligent EPS UV Ballast Power Supply is equipped with intelligent control capabilities, allowing it to monitor and adjust UV lamp parameters in real time. This intelligent control ensures consistent and reliable UV output.
  2. Energy Efficiency: These power supplies are designed with energy efficiency in mind. They optimize power consumption, reduce energy costs, and minimize the environmental footprint, making them an eco-friendly choice.
  3. Customization: Users can customize various settings, including current, voltage, and frequency, to fine-tune UV lamp performance to meet the specific requirements of their application. This customization ensures optimal UV output and versatility.
  4. Stability: Intelligent EPS UV Ballast Power Supplies maintain stable UV lamp output throughout the lamp's operational lifespan. This stability reduces fluctuations in UV intensity and ensures reliable performance over time.
  5. Extended Lamp Life: By providing precise control and the right conditions for UV lamps, these power supplies can extend the life of the lamps. This, in turn, reduces the frequency of lamp replacements and associated maintenance costs.
  6. Environmental Responsibility: The power supplies are designed to be environmentally responsible, typically free from hazardous materials like mercury. They contribute to environmentally conscious operation and reduce the generation of hazardous waste.
  7. Diagnostic Features: Many Intelligent EPS UV Ballast Power Supplies include diagnostic capabilities. These features enable real-time monitoring and fault detection, making it easier to identify and address issues promptly, minimizing downtime.
  8. Safety: Safety is a paramount consideration in the design of these power supplies. They often include built-in safety features to protect against electrical faults, ensuring safe operation and reducing the risk of accidents.
  9. Remote Control: Some models offer remote control capabilities, allowing for convenient operation and monitoring from a distance. This can be especially valuable in applications where accessibility is a challenge.
  10. Compatibility: These power supplies are typically compatible with various types of UV lamps and are suitable for use in UV curing, sterilization, phototherapy, and other applications where precise UV control is essential.



Products Application



  • UV Curing Systems
  • Sterilization and Disinfection Equipment
  • Phototherapy Devices
  • Laboratory Research
  • Printing and Coating Machinery
  • Water and Air Treatment Systems





The Intelligent EPS UV Ballast Power Supply represents a state-of-the-art solution for UV lamp control. Its intelligent features, energy efficiency, customization options, and reliability make it an ideal choice for demanding UV applications across a range of industries.
