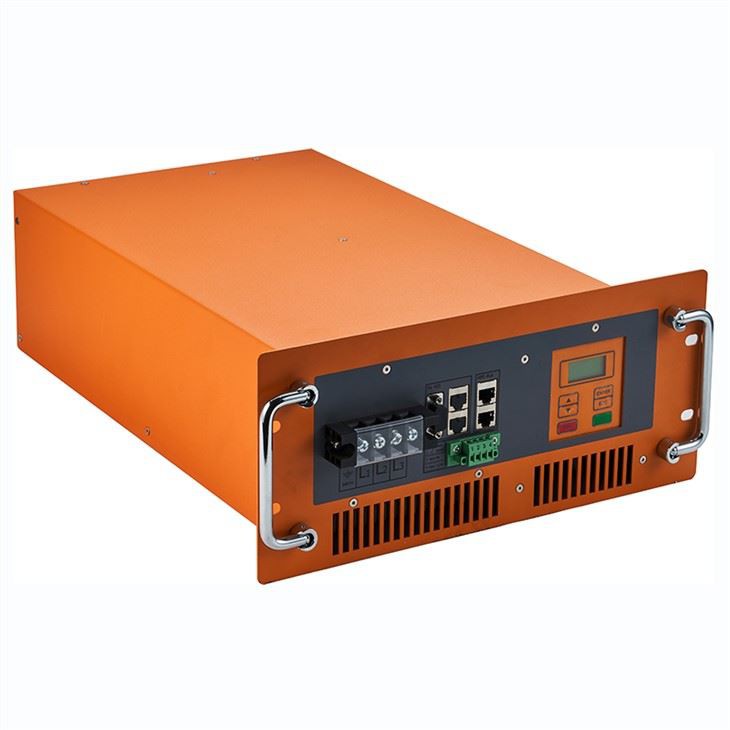

HPE Intelligent UV Power Supply

For 6KW-12KW UV Lamp---WBTA

Input Section
Main Input Voltage	360~440Vac
Frequency	>47Hz
COS∅	1
Power Factor	0.96
THD （current）	30%
Efficiency	Typ.>94%
Output Section
Working Frequency	Variable from 6Khz to 16Khz
Ignition Voltage	>4000Vpp
Ignition Frequency	270Khz
Max. Output Power	12.0Kw(55℃ ambient Temp)
Output Voltage	Up to 1000Vac
Output Current	Up to 15A
Control Port	MODBUS/Analog and Digital I/O
Lamp Monitoring	Voltage/current/power/status/error code
Protections	Input under/over Voltage； Phase Loss Output Open/Short Output Over voltage Over Temperature Ground&Leakage Fault
Auxiliary Section
Voltage	21Vdc-30Vdc
Current	4.0Adc
Working Environment
Max. ambient Temperature	40-55℃(up to 1000meters Sea Level)
Max. Humidity	<80%
Protection Class	IP20
Cooling	Forced Air Cooling
Dimension (LWH)mm	553*364*160
Weight	14Kg

Features：

● High Frequency and Square-Wave power output to get more UV output

● Tunneling ignition (Patent technology) and easy to ignite the lamp

● Micro-processor dynamic control technology to get more efficiency and stability

● Amplitude technology to regulate the power control from 10% to 100%(based on lamp character)

● Control Interfaces: MOD BUS RS485 and Analog &Digital interface

● Compact design to get small size and lower weight

Applications:

● UV Curing

● UV Coating and Bonding

● UV Sterilization & Disinfection

● UV Photochemical Catalysis

● UV Photolysis Oxidation
